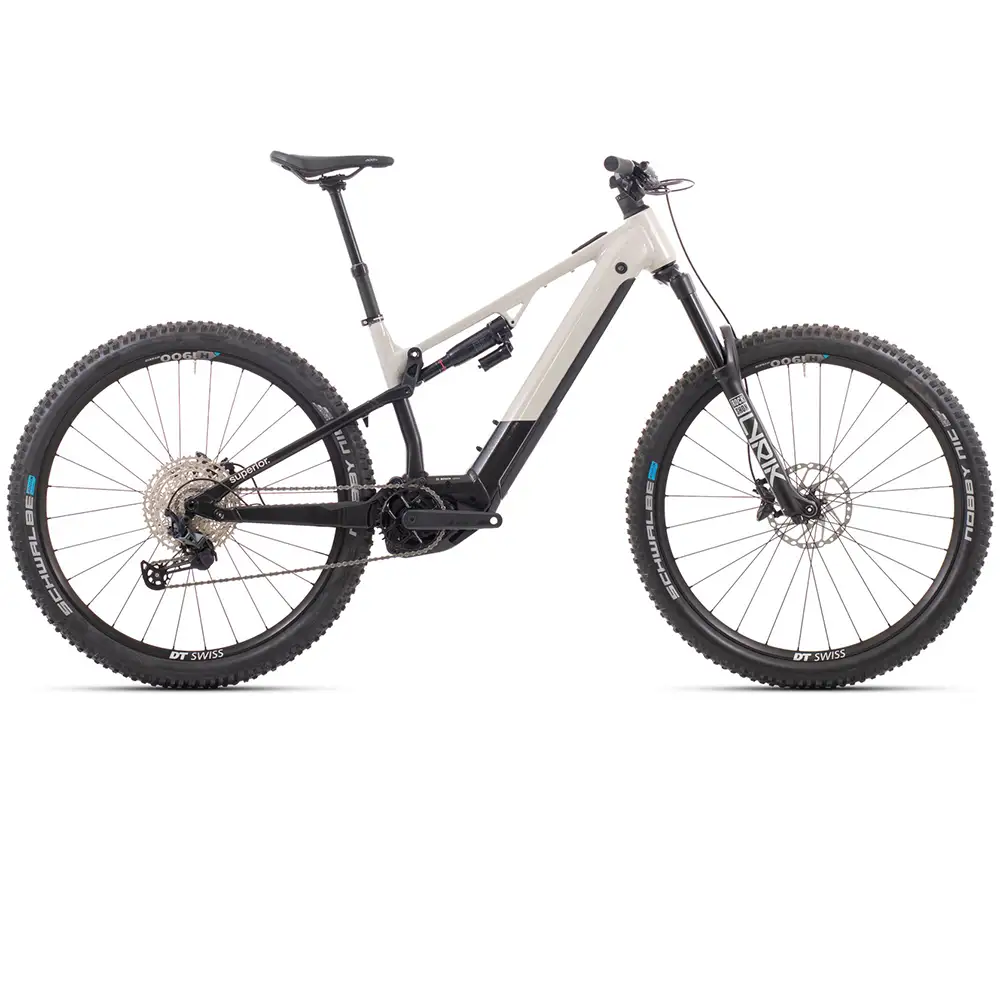

EXF 9039 B – VTT Electrique SUPERIOR – 160mm/160mm – BOSCH PERF CX 85Nm / 750Wh

MOTEUR  BOSCH CX Performance 85Nm

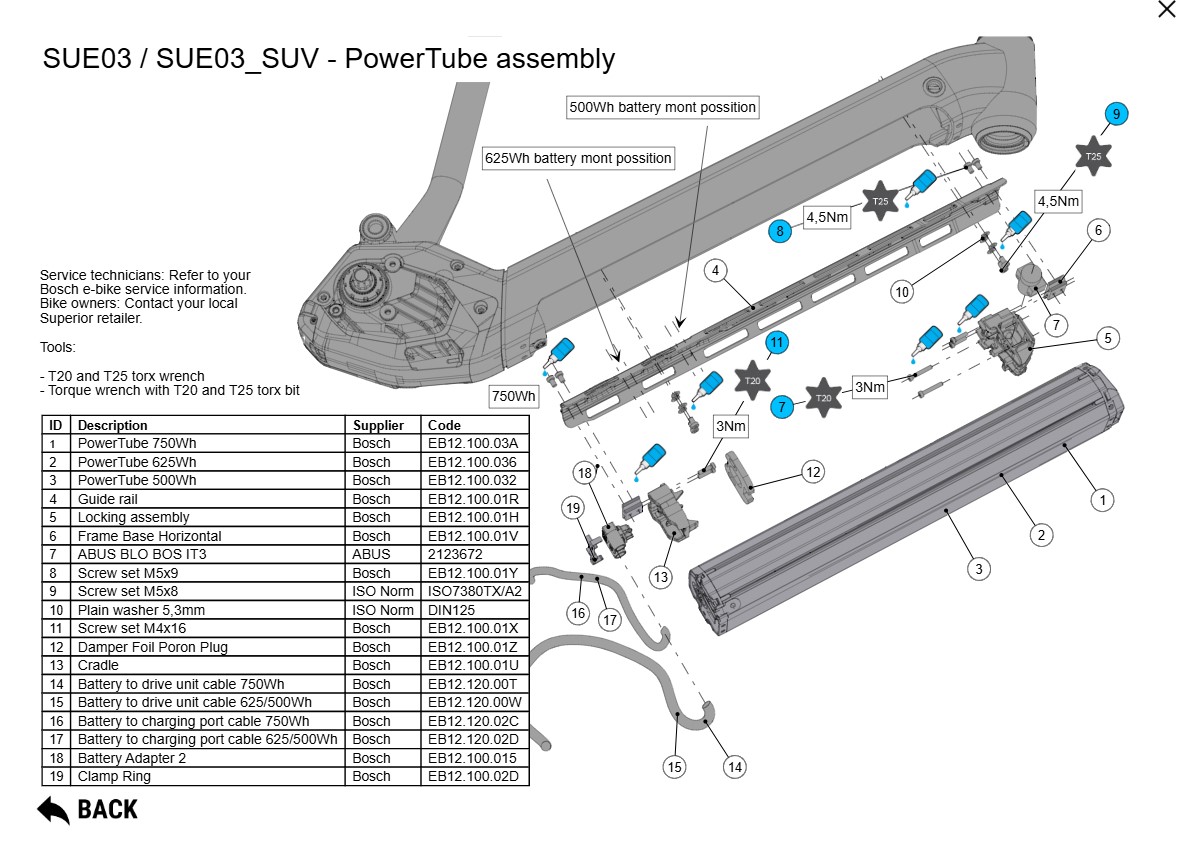

BATTERIE PowerTube 750Wh, Smart System
POIDS  25.15 kg
PTAC 150 Kg

CADRE Aluminium 160mm/160mm
FOURCHE RockShox Lyrik Select RC, Tapered, DebonAir, 15x110mm axle, 160mm travel

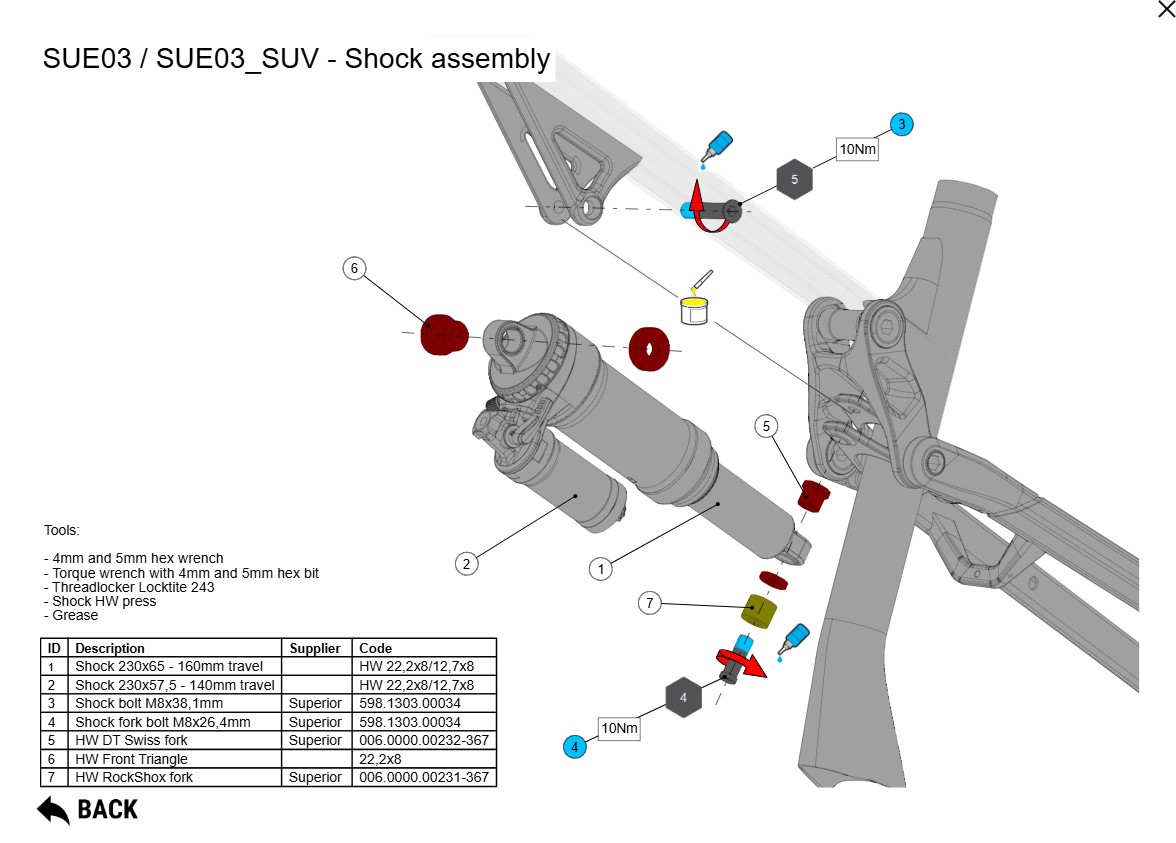

SUSPENSION RockShox Super Deluxe Select R, size 230x65mm

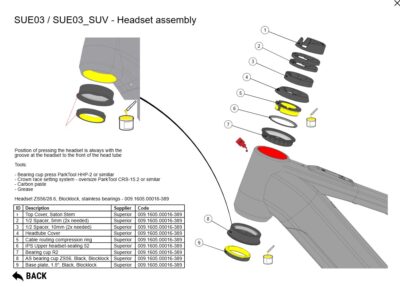

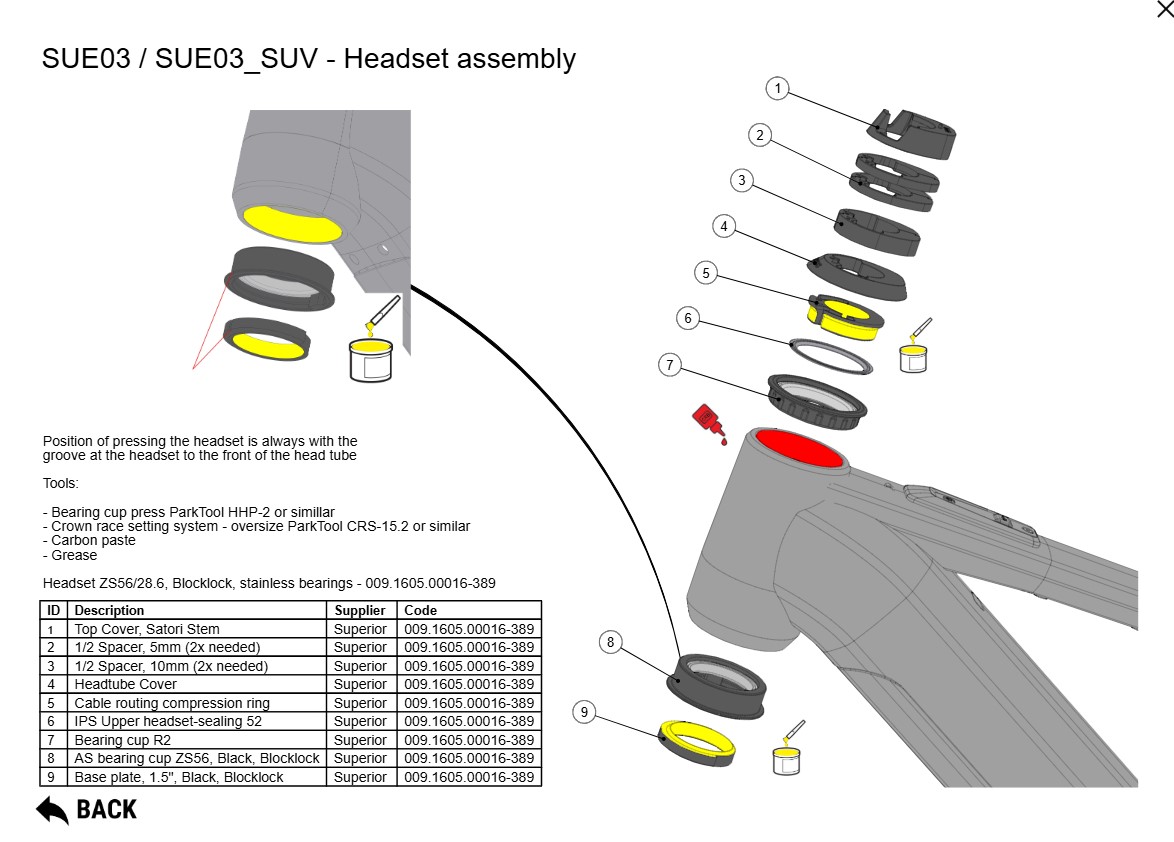

JD ACROS AZX-1051, ICR, ZS56/28.6 – ZS56/40, BlockLock 120°

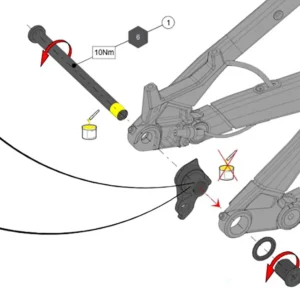

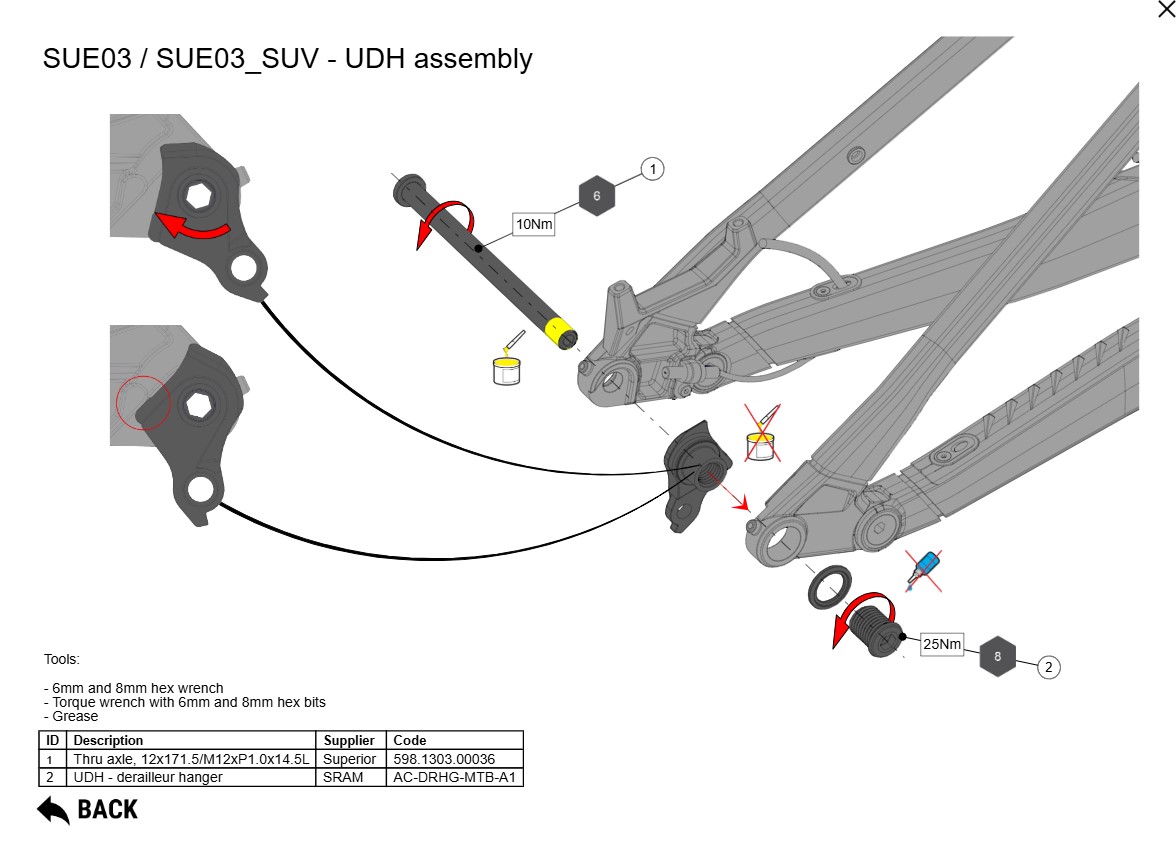

REAR AXLE SB02, TA12x171.5, M12xP1.0x14.5mm, Black

LEVIER SHIMANO DEORE SL-M6100-IR, RAPIDFIRE Plus, 12speed
DERAILLEUR SHIMANO SLX RD-M7100, Shadow Plus Design
PEDALIER ONE Race, Alloy
PLATEAU ONE Race, 34T
CASSETTE SHIMANO DEORE CS-M6100, 12-speed, 10-51T
CHAINE  SHIMANO DEORE CN-M6100

FREINS SHIMANO M6120, 4 piston, hydraulic disc brake
DISQUES avant SHIMANO SM-RT64, 180mm Disque arrière SHIMANO SM-RT64, 180mm
ROUES DT Swiss H 1900 SPLINE®, CL, 15x110mm, Tubeless Ready
PNEUS Schwalbe Nobby Nic Performance, 29×2.60

Potence ONE ICR, Alloy, 35mm, 0°
Guidon ONE Alloy, 12mm rise, 35mm
GRIPS ONE Race, Lock-On

Selle Fizi:k Aidon X5, Alloy
Tige de ONE Sport Dropper Post, Alloy, 30.9mm

SEATPOST CLAMP ONE CC-617, 34.9mm,

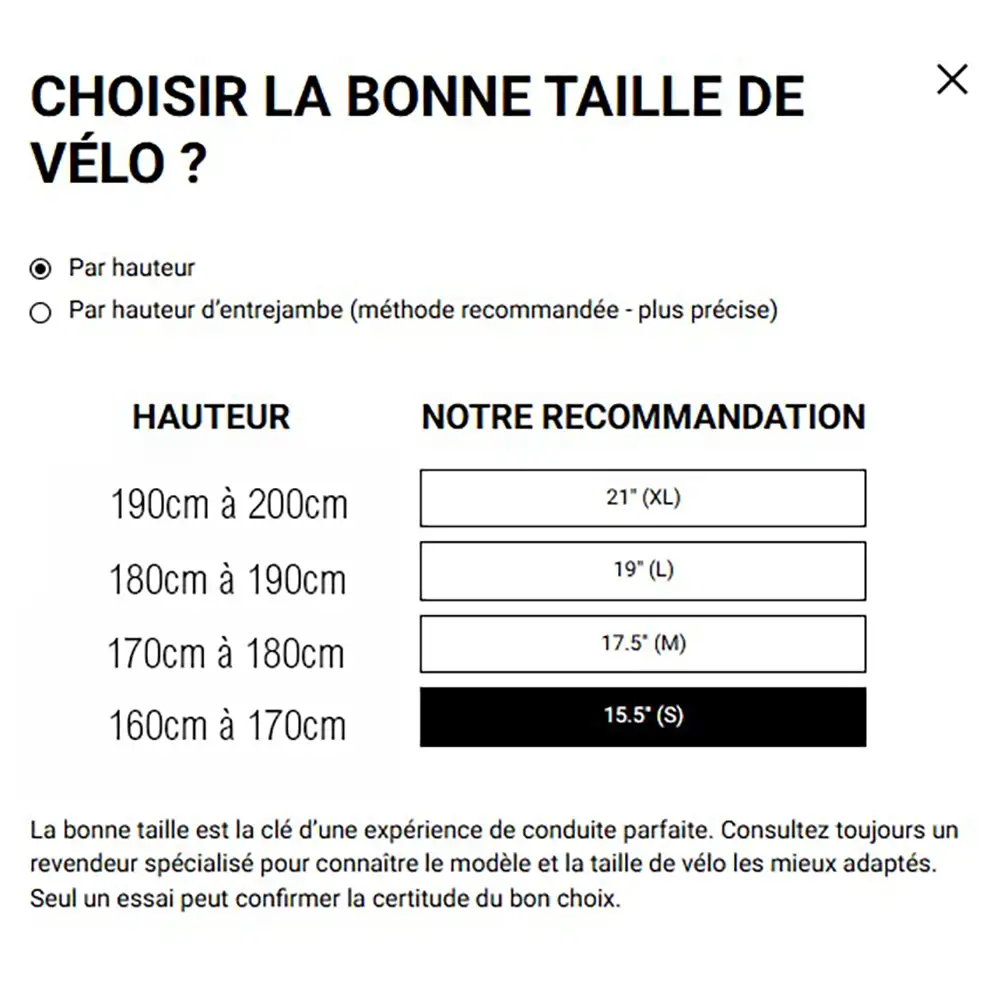

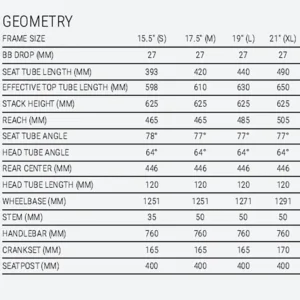

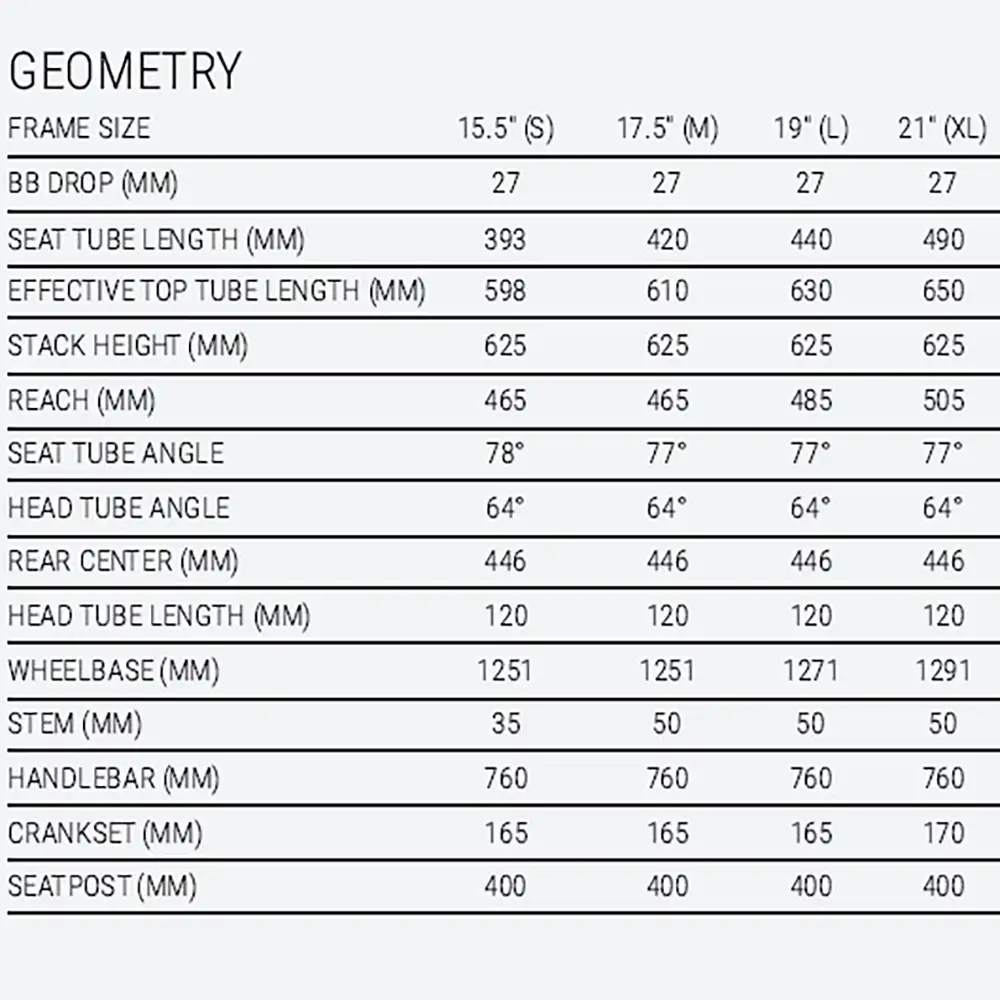

GUIDE DES TAILLES ET GEOMETRIE

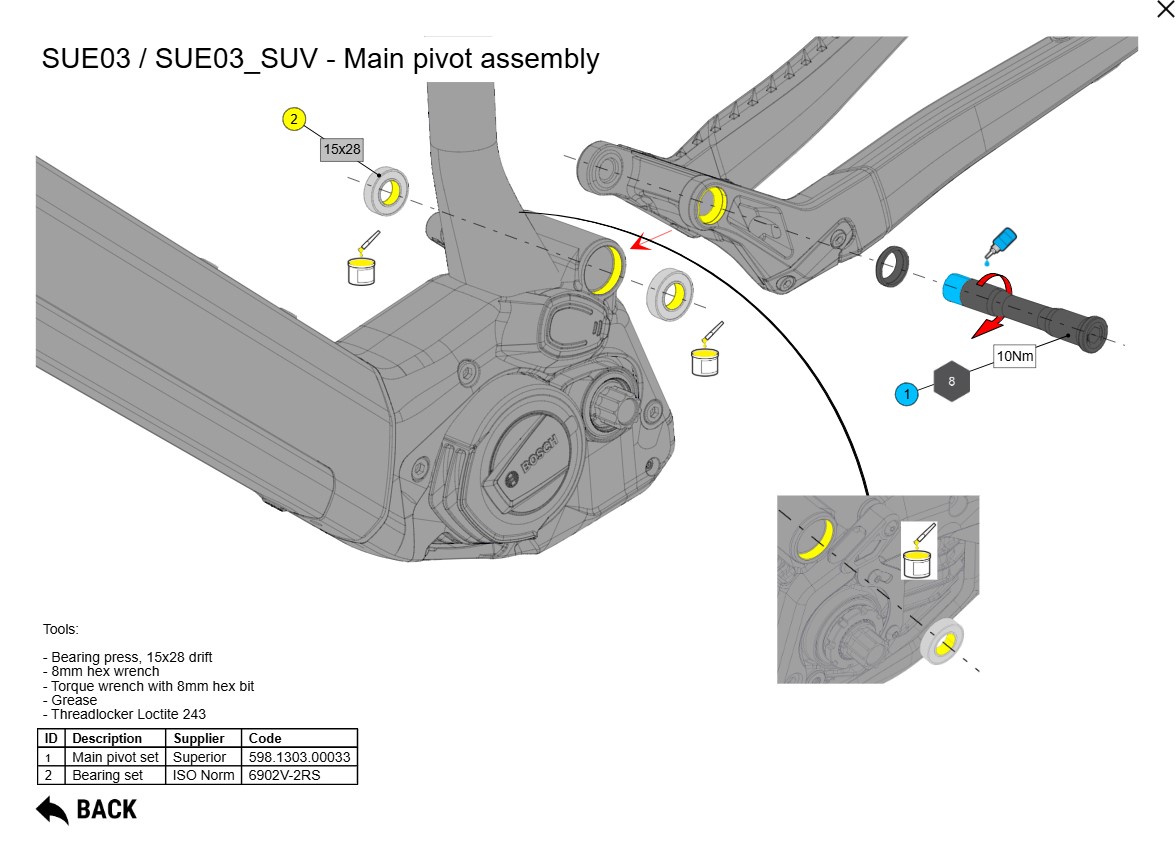

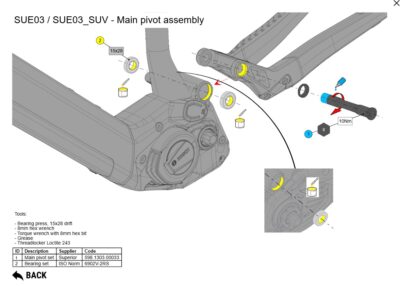

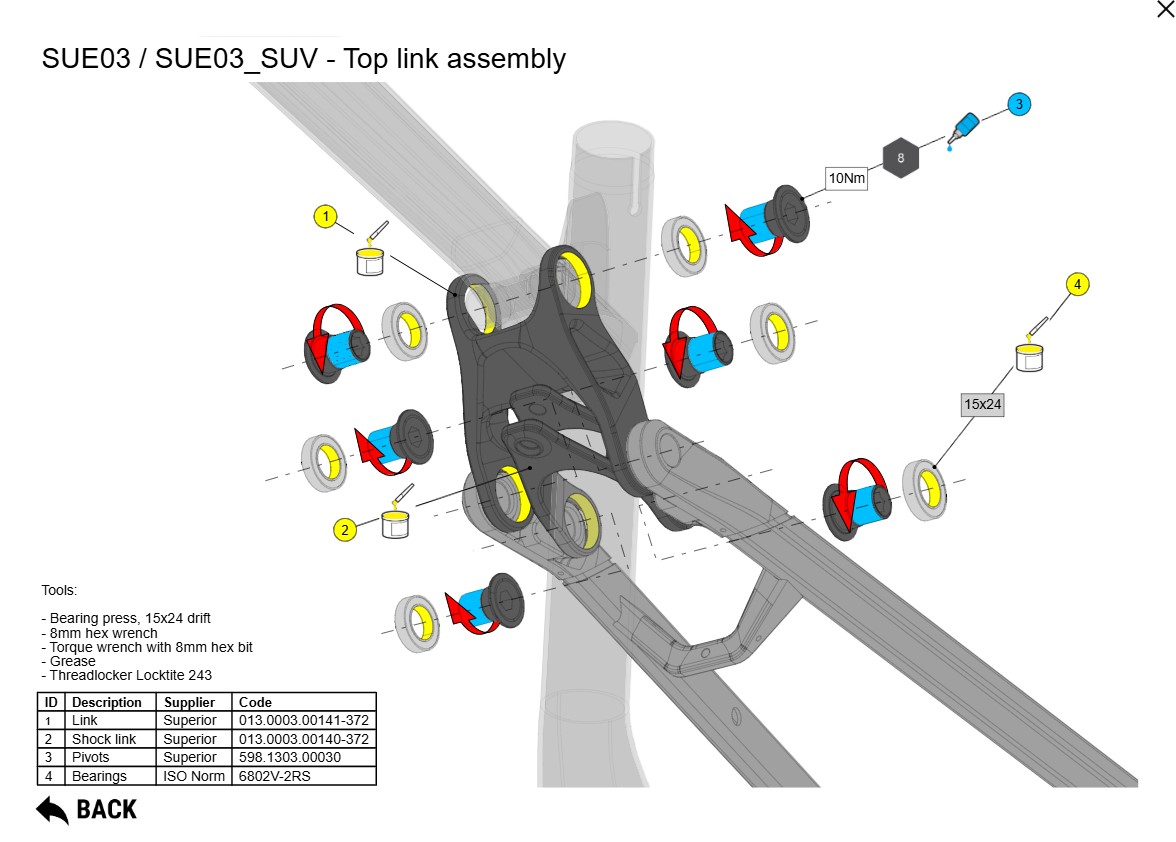

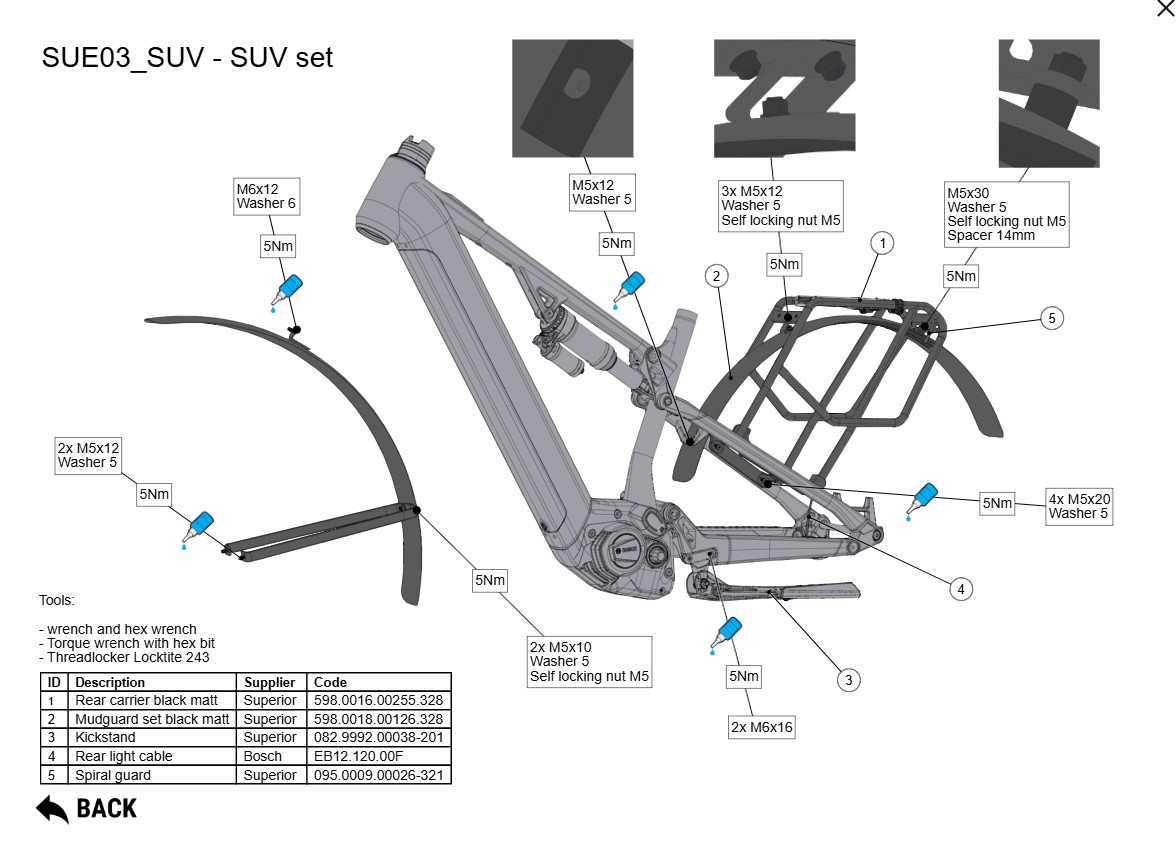

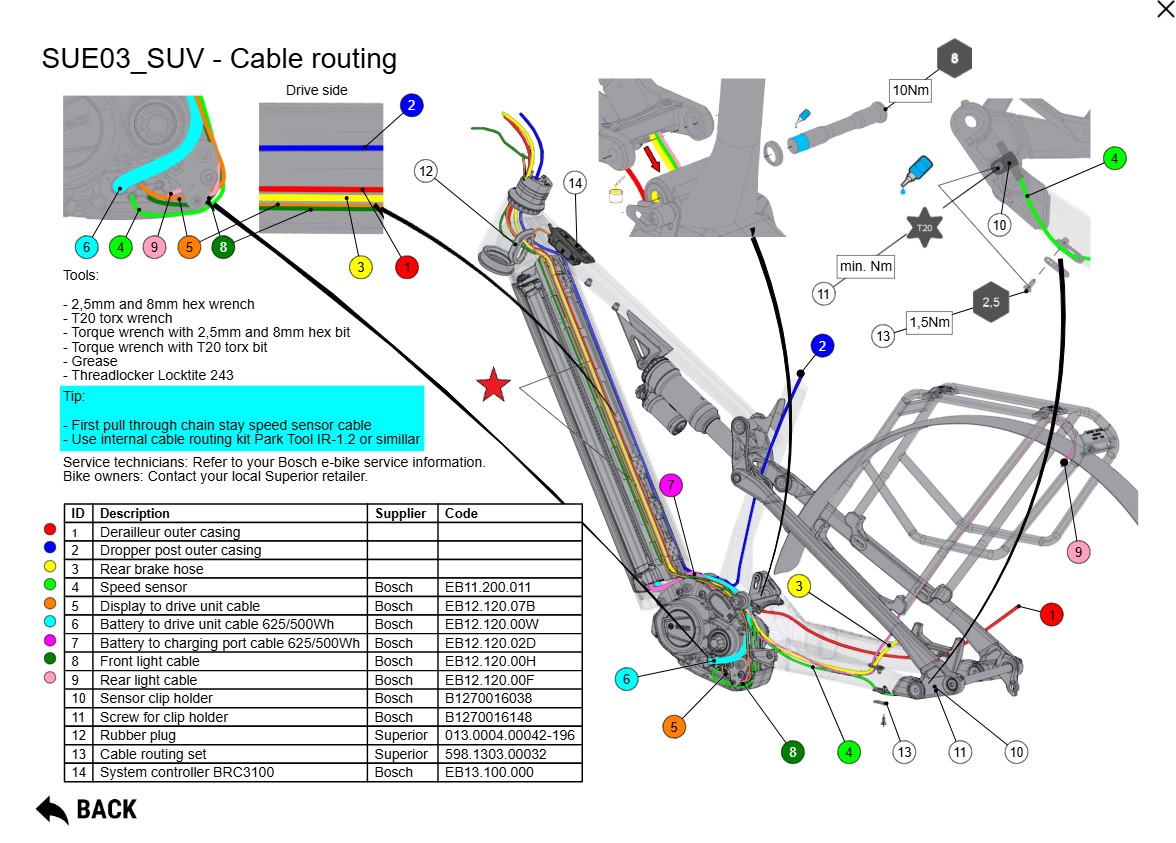

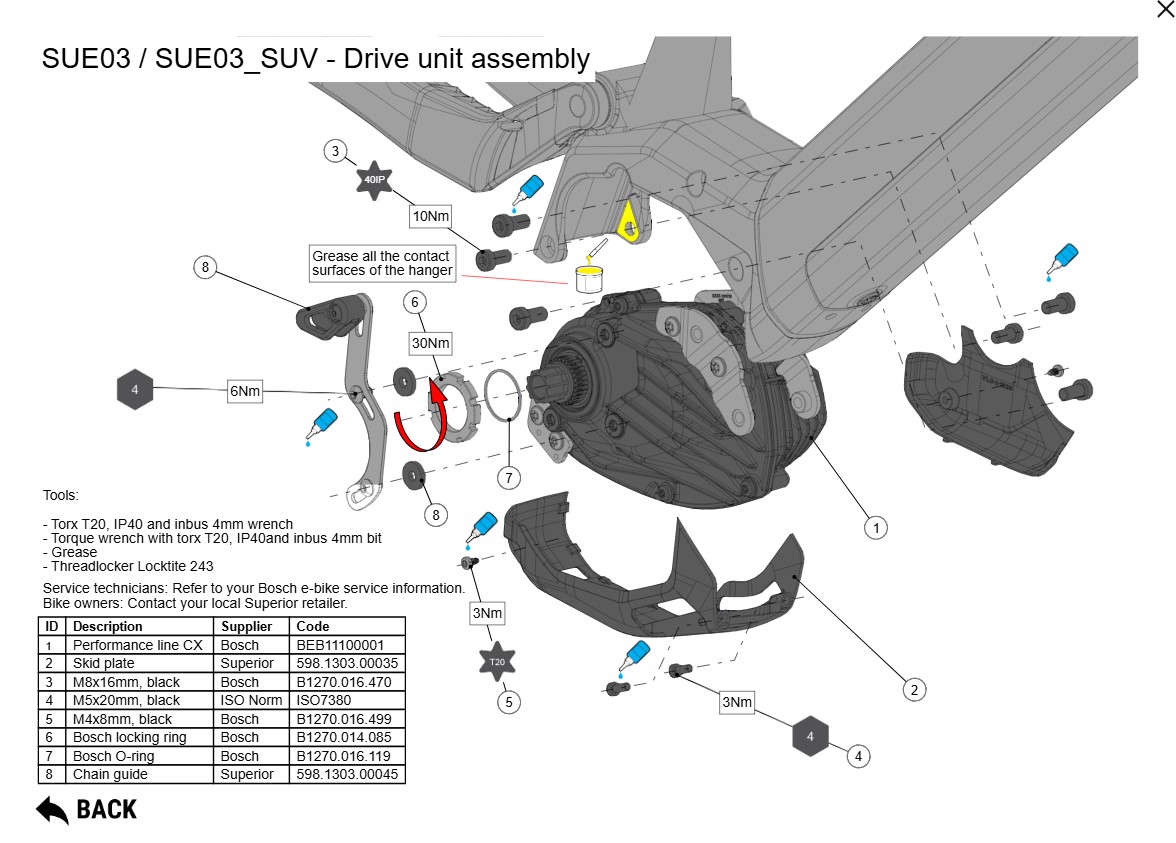

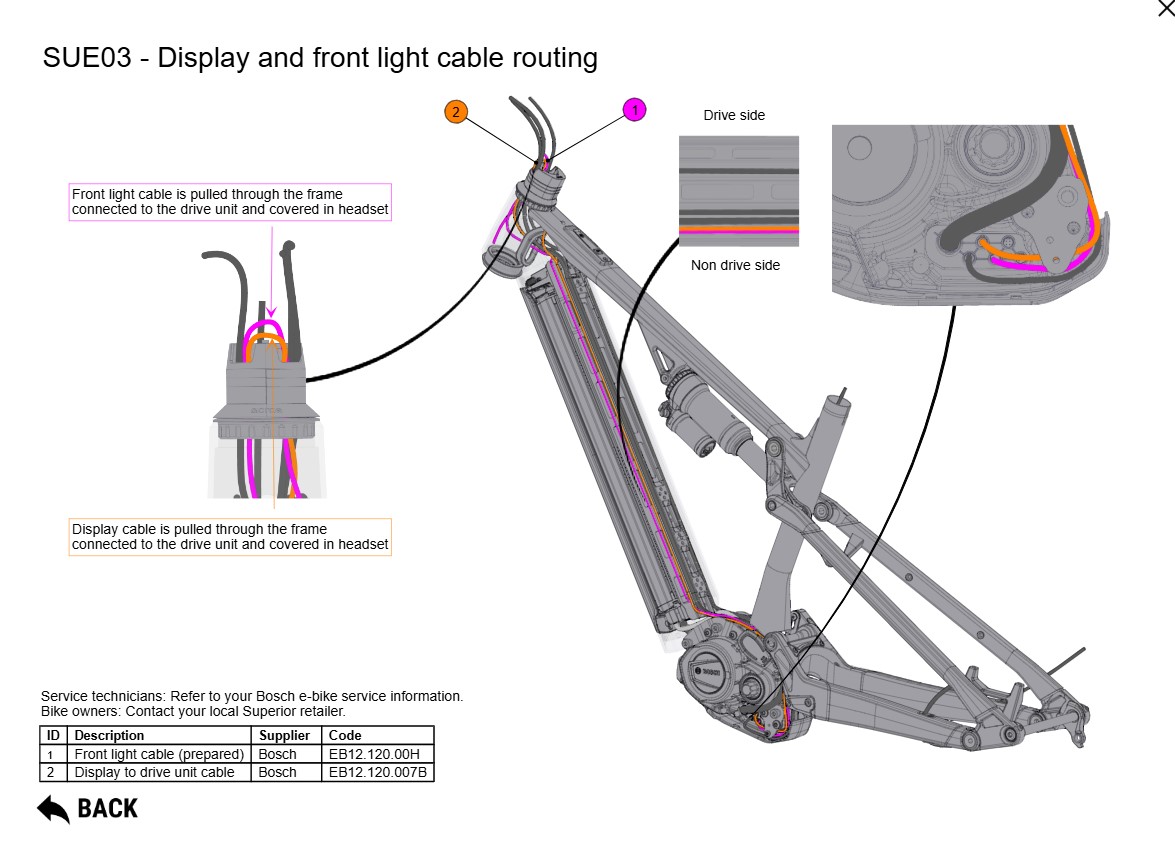

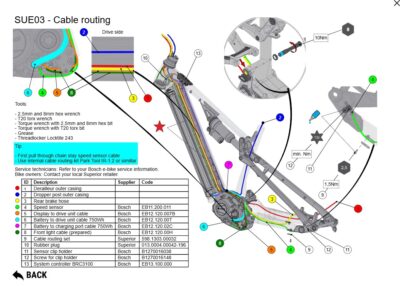

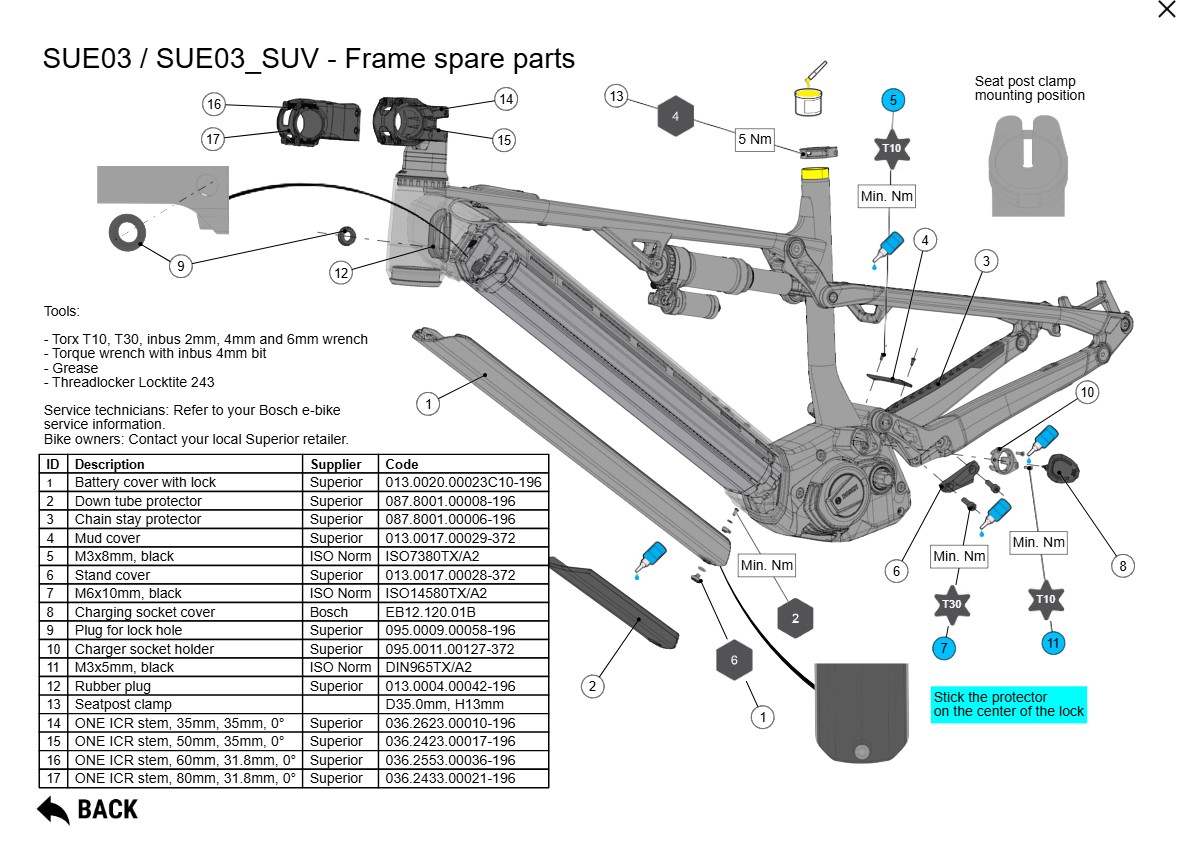

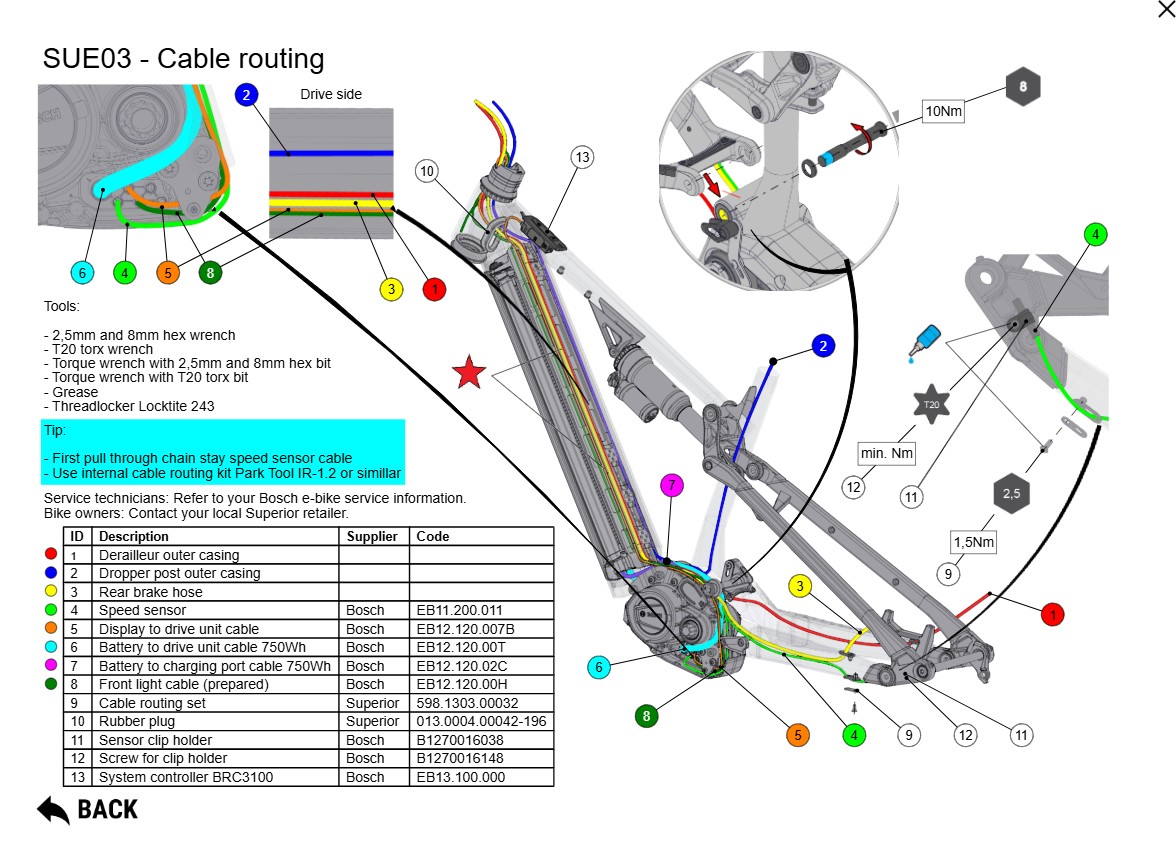

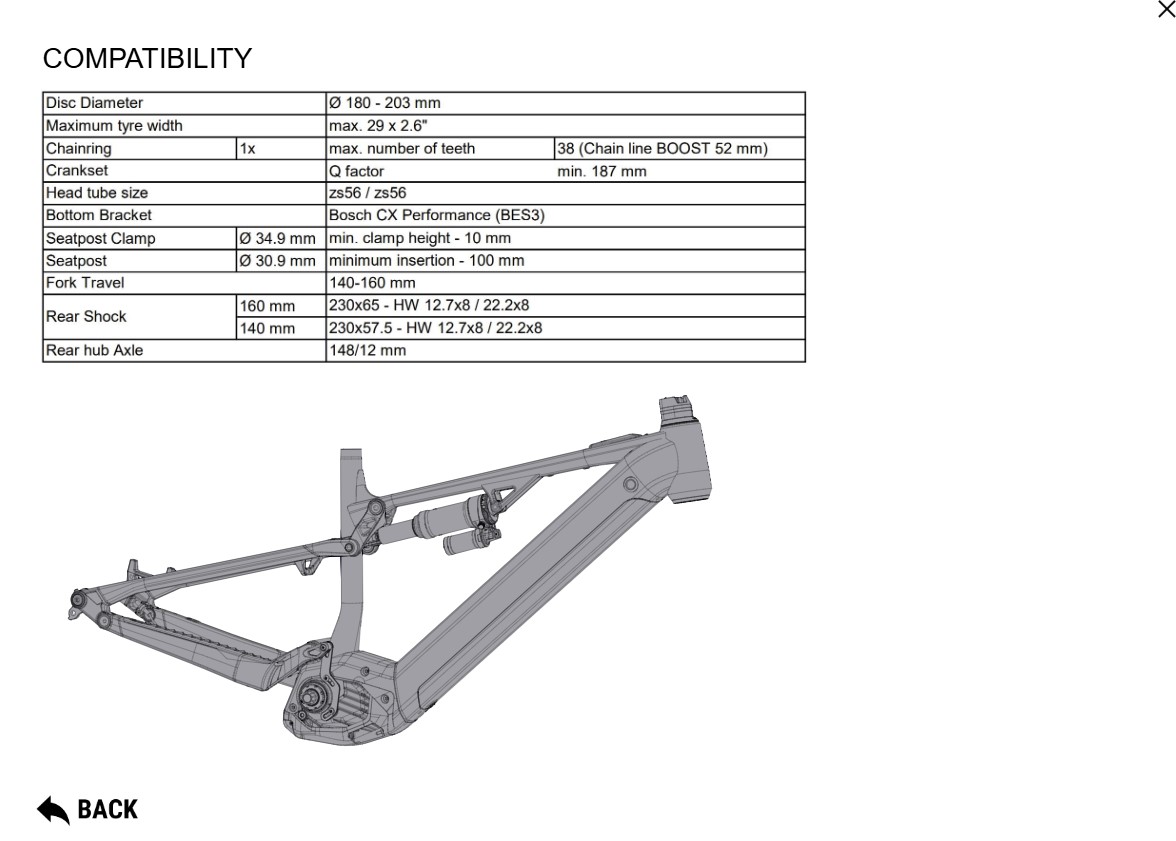

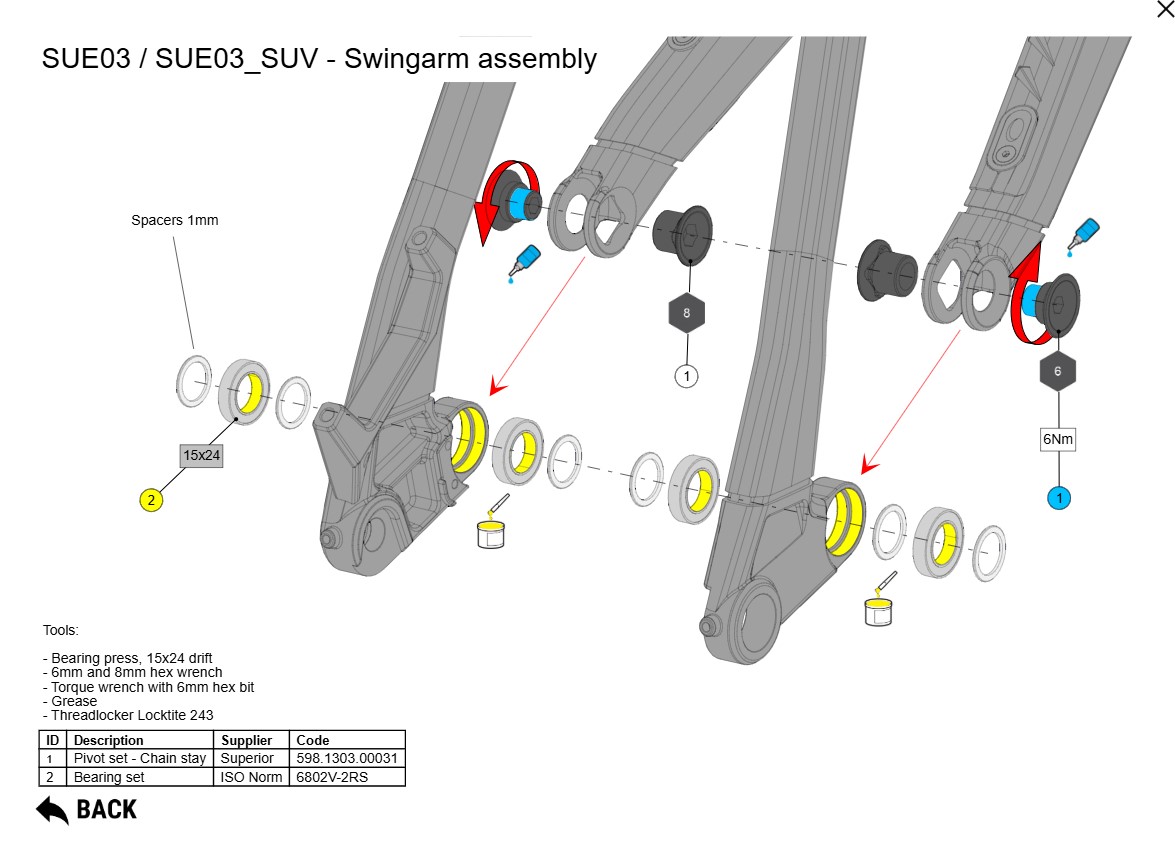

DOCUMENTATIONS TECHNIQUES

Référence Apesud : SP23-E-XF-9039
