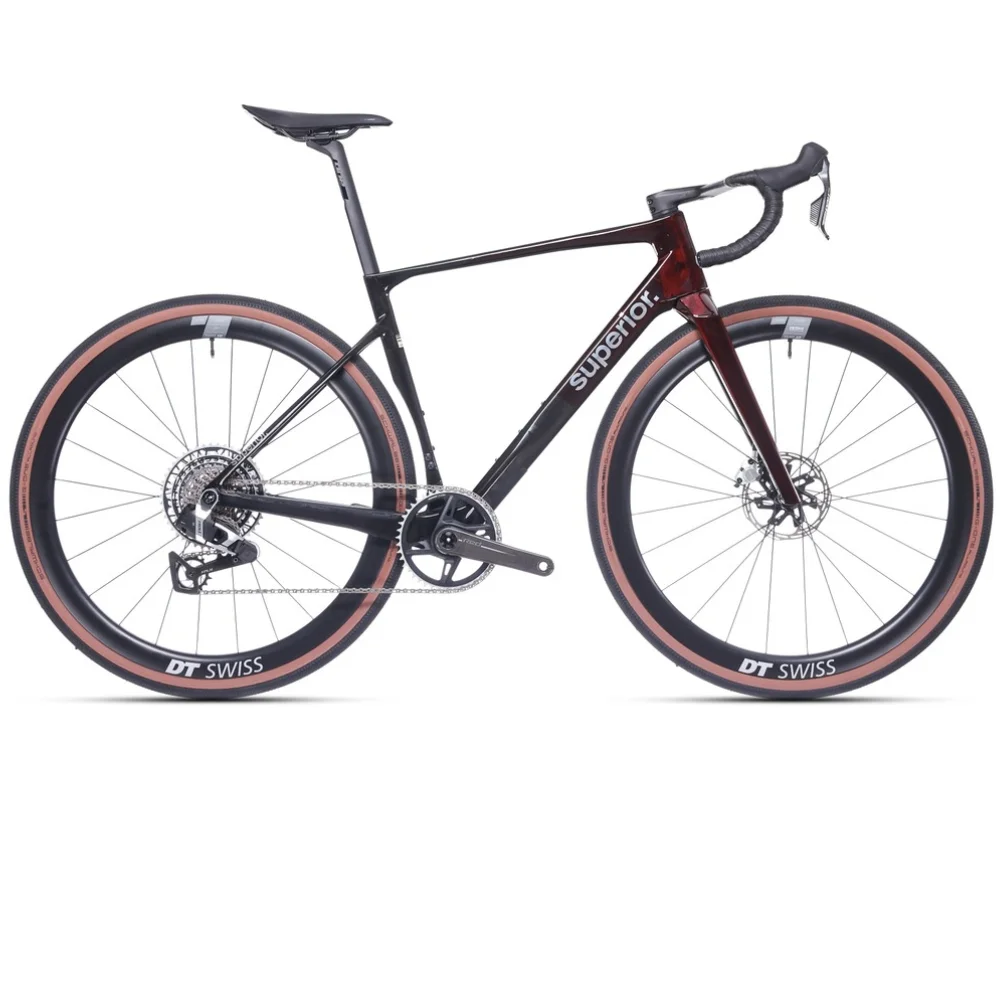

      XR 9.9 GR – Gravel Race SUPERIOR Carbone Hm – RED XPLR 13s/DT GRC 1400

      PPC : 7 999,00 € TTC
      SUPERIOR
      Description

      CADRE  Carbon XR Race High Modulus,
      Fourche XR Hi Modulus Carbon Fork
      Boîtier de pédalier SRAM DUB ROAD WIDE, PressFit, shell 41×86,5 mm

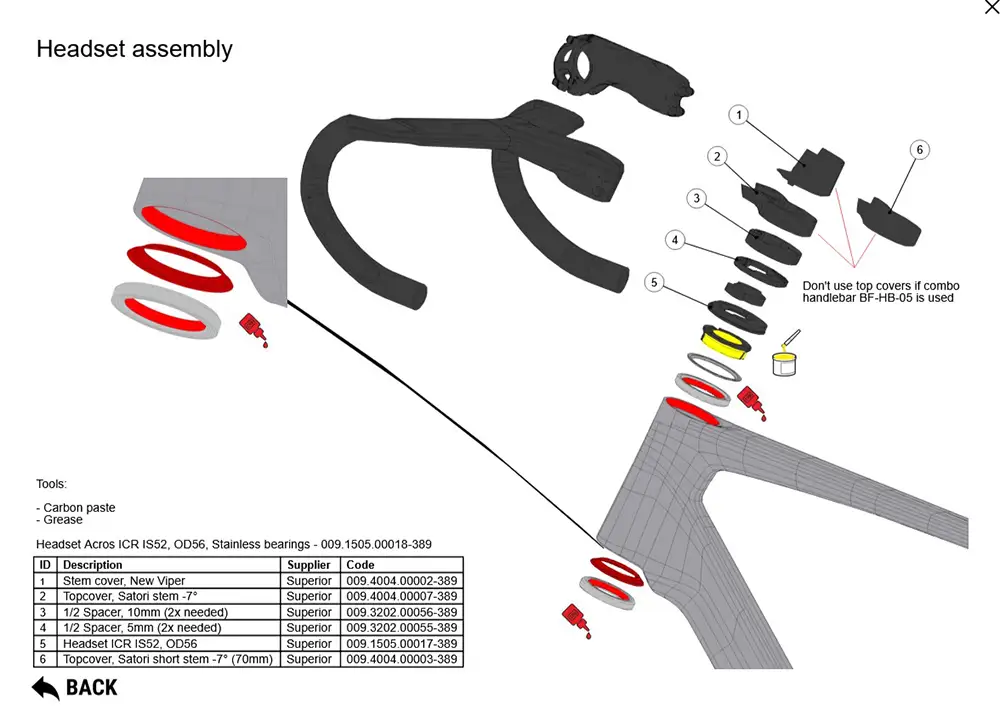

      Jeu de direction ACROS AIX-525R3S, ICR, OD56, IS52/28.6 – 40IPS

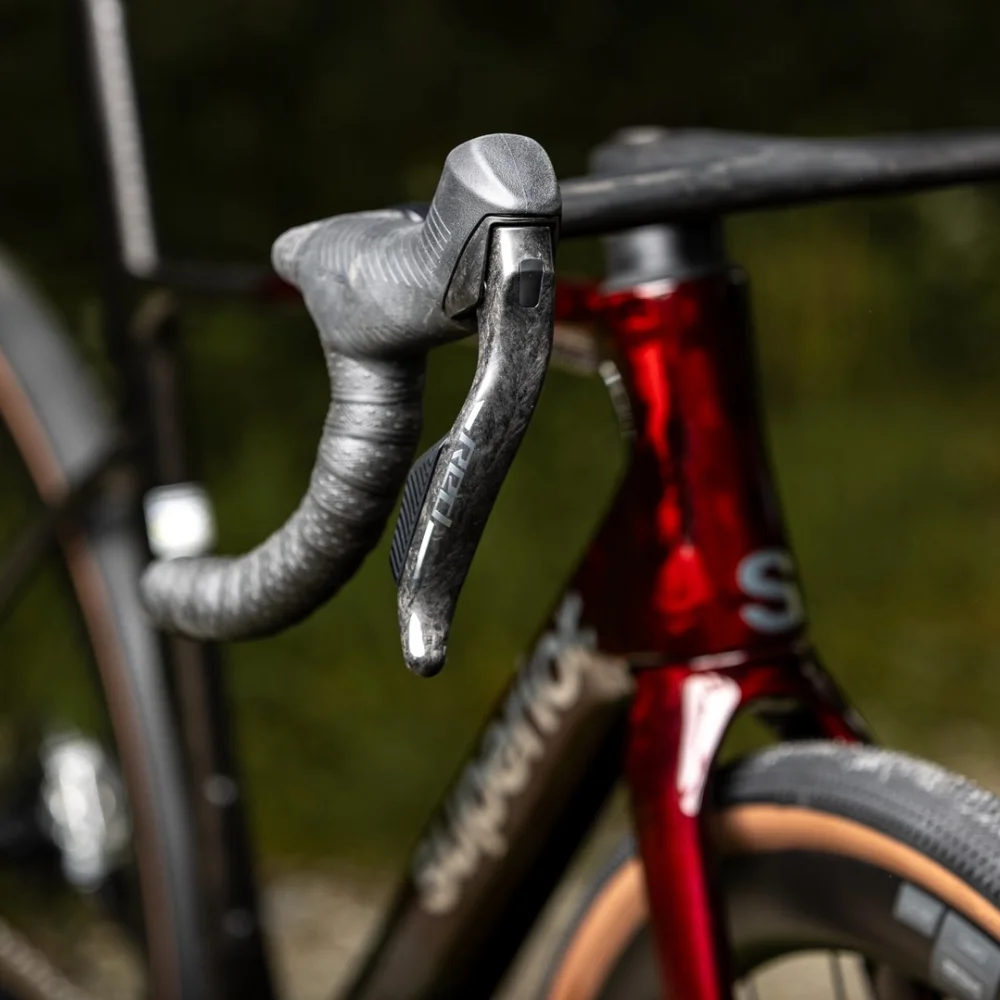

      SHIFTERS GAUCHE SRAM RED AXS, electronic shifter
      SHIFTERS DROIT SRAM RED AXS, electronic shifter

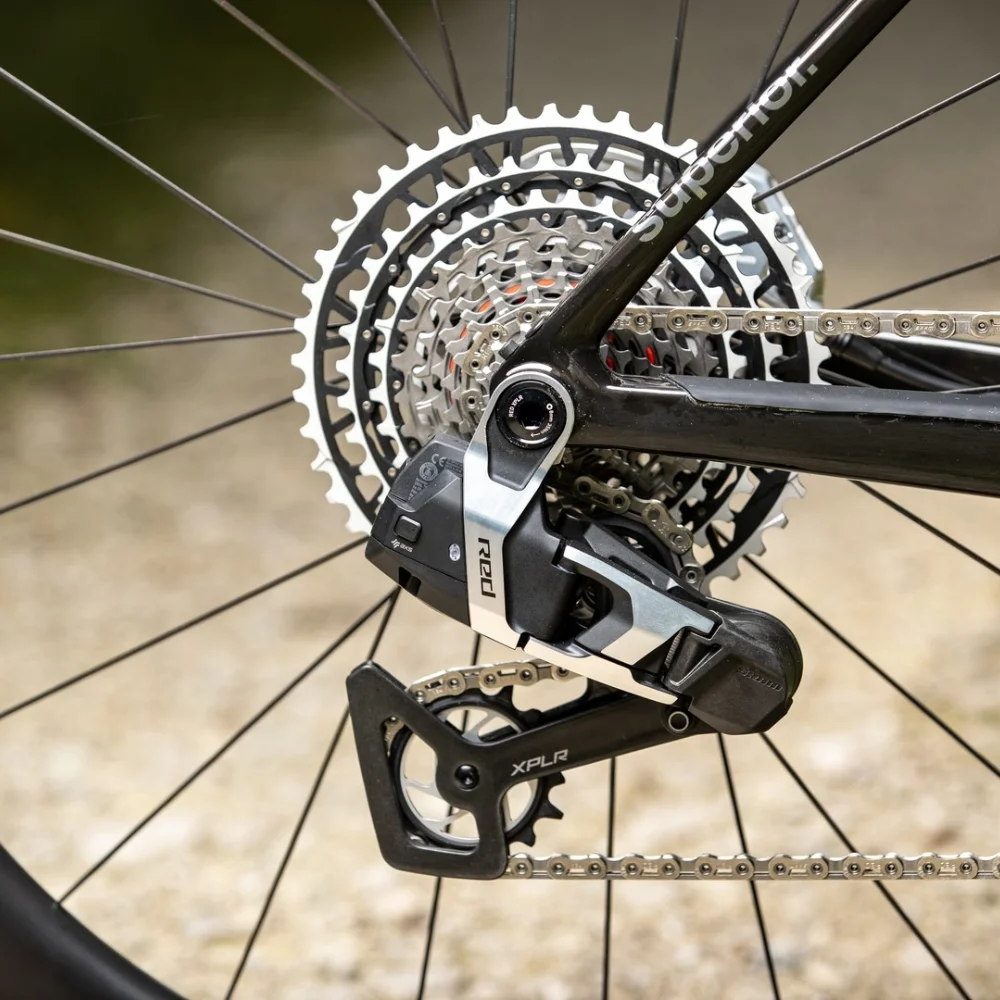

      Dérailleur arrière SRAM RED XPLR AXS, 13 speed
      Pédalier SRAM RED XPLR, DUB WIDE, 44T
      Cassette SRAM RED XPLR XG-1391, 13-speed, 10-46T
      Chaîne SRAM RED, Flattop 12s/13s, 120 Link

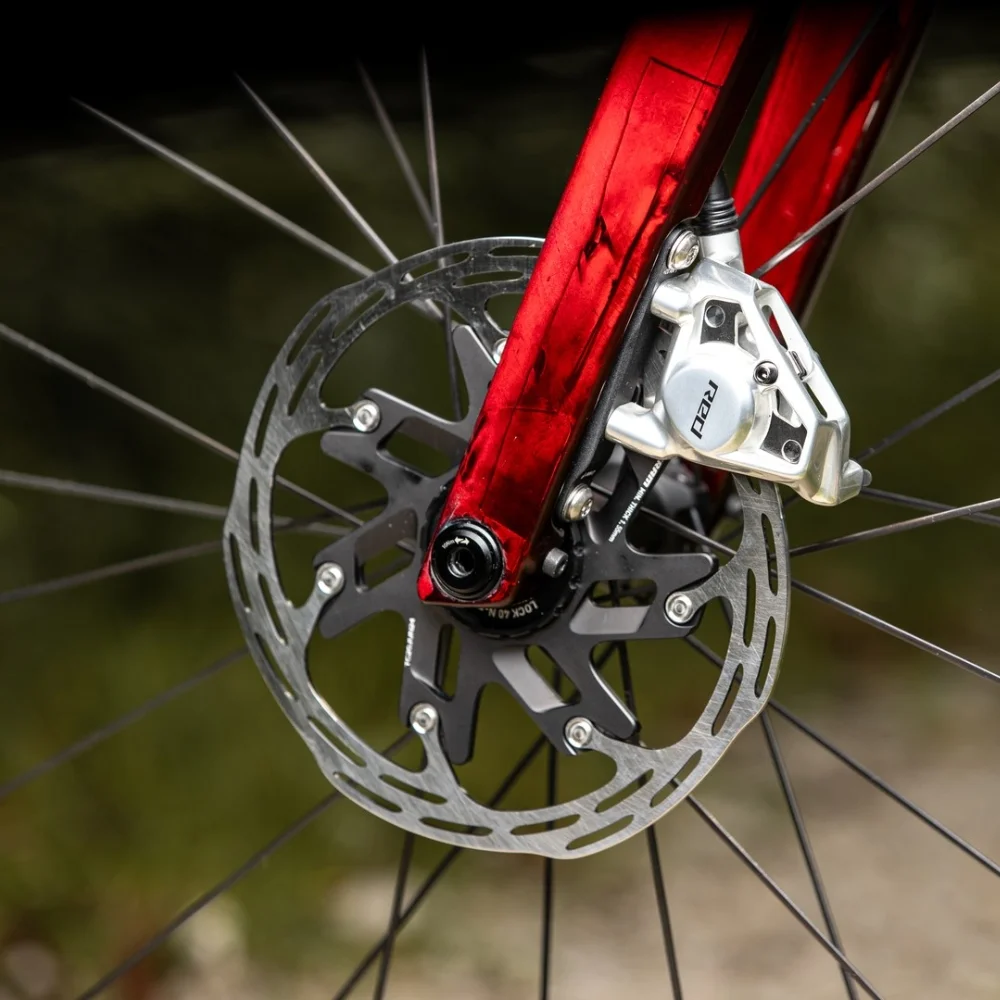

      Frein avant SRAM RED AXS, hydraulic disc brake
      Disque avant SRAM Paceline X, 160mm
      Frein arrière SRAM RED AXS, hydraulic disc brake
      Disque arrière SRAM Paceline X, 140mm
      Roue avan DT Swiss GRC 1600, Carbon, CL, 12x100mm, Tubeless Ready
      Roue arrière DT Swiss GRC 1600, Carbon, CL, 12x142mm, XDR, Tubeless Ready
      Pneu avant Schwalbe G-One Allround, RaceGuard, TL-Easy, 40-622, ADDIX
      Pneu arrière Schwalbe G-One Allround, RaceGuard, TL-Easy, 40-622, ADDIX

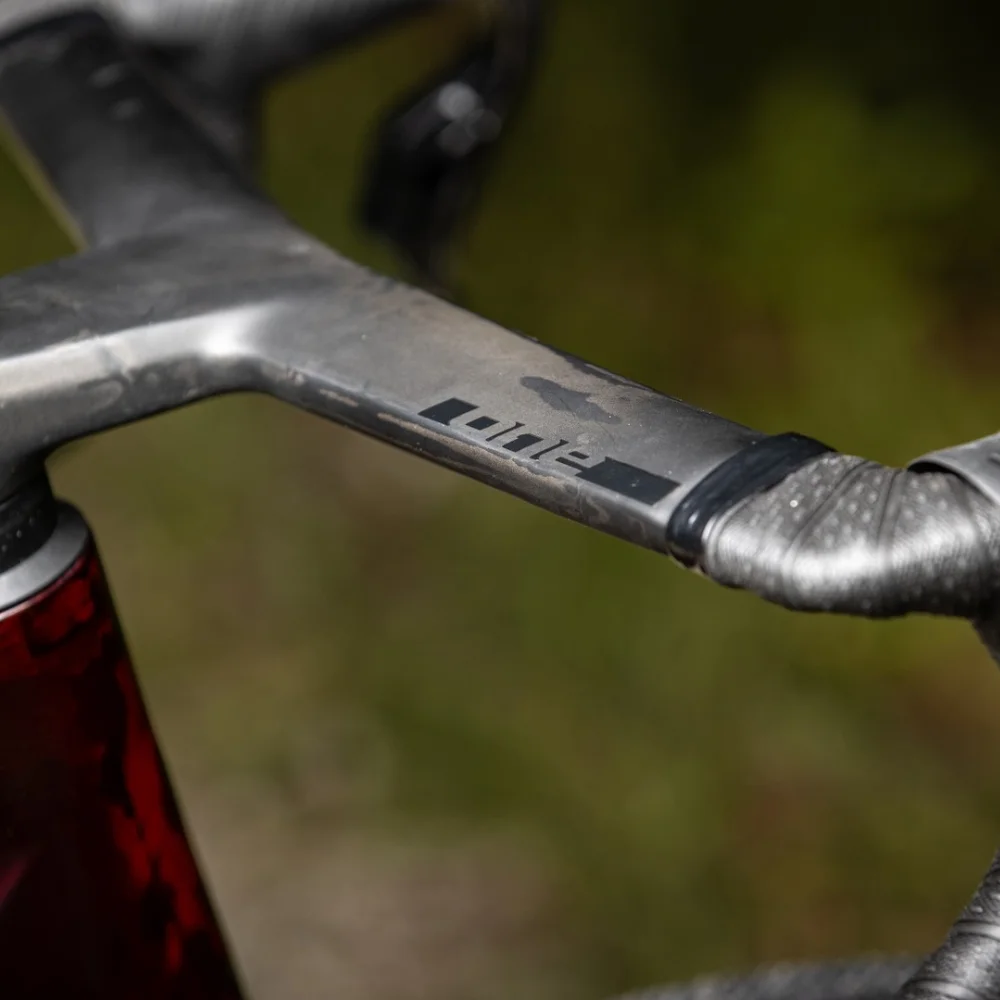

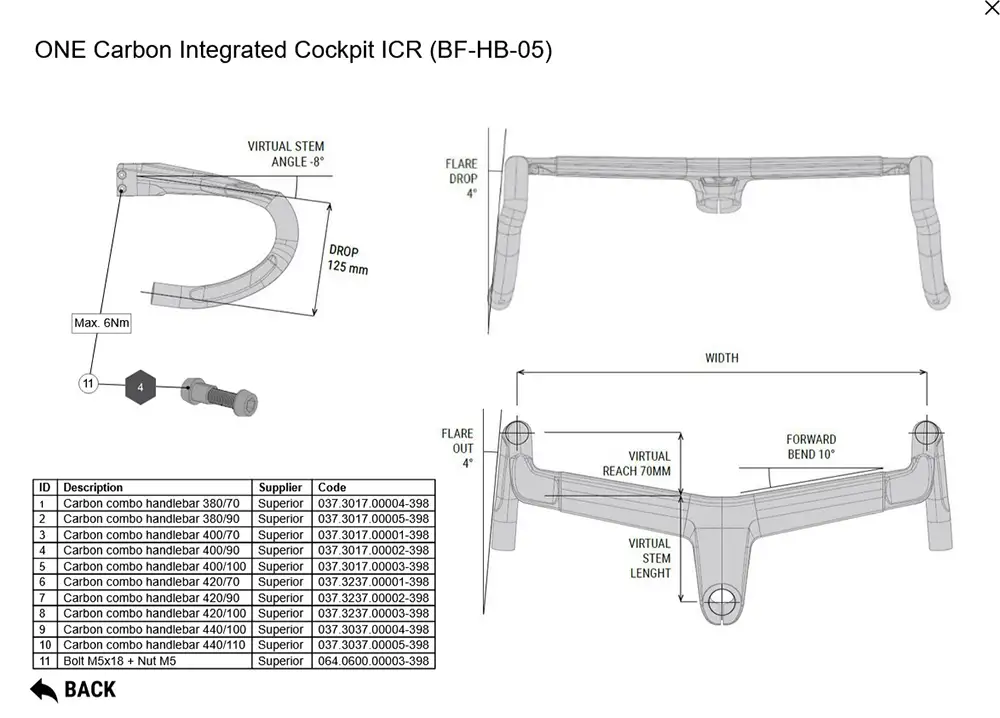

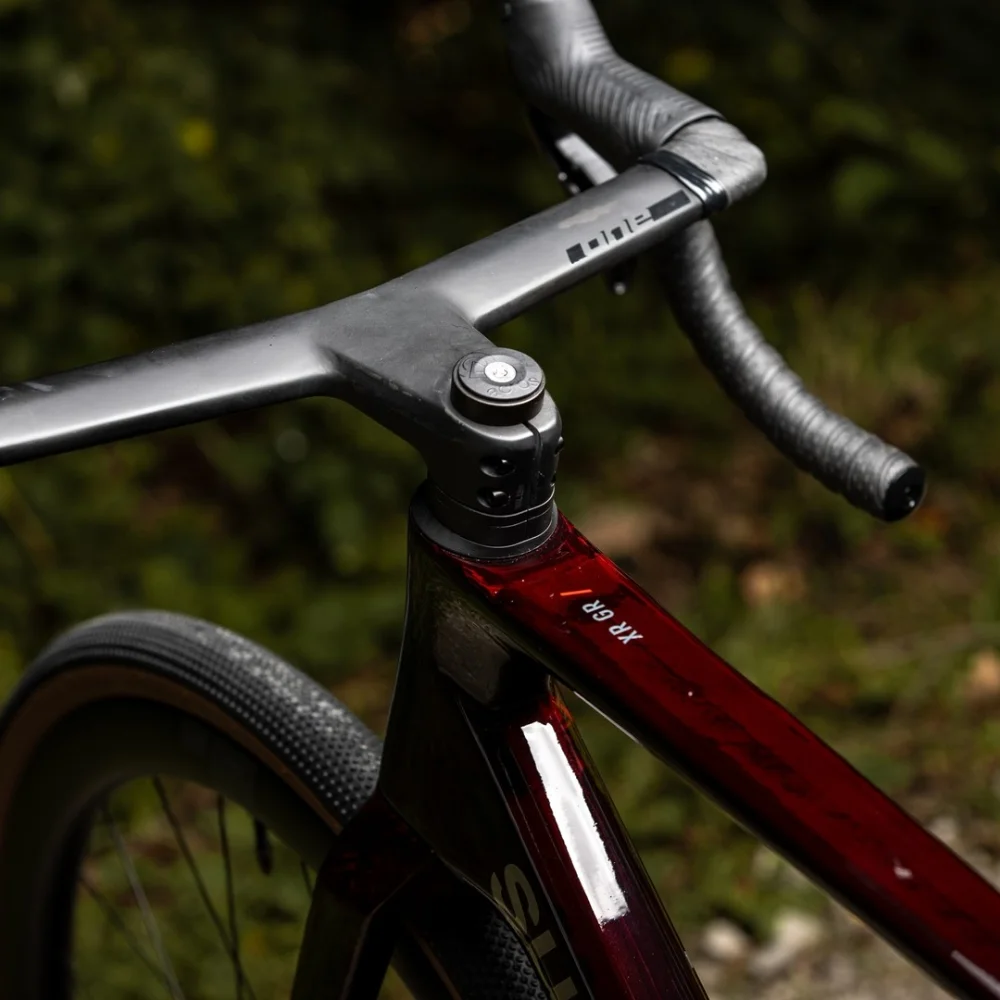

      COMBO ONE Carbon Integrated Cockpit ICR
      Selle Fizi:k Vento Argo R5, Alloy
      Tige de selle ONE Aero Carbon
      Feu arrière Litemove Rear Visibility Light, Red

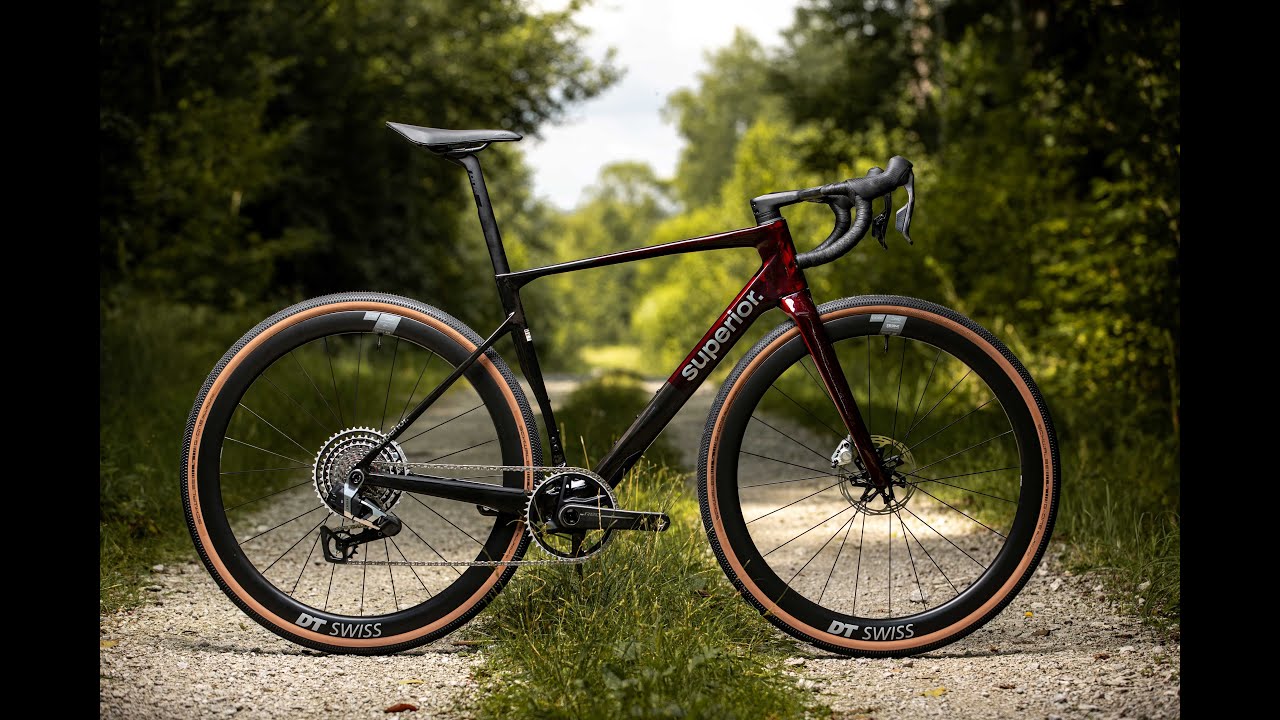

      XR 9.9 GR

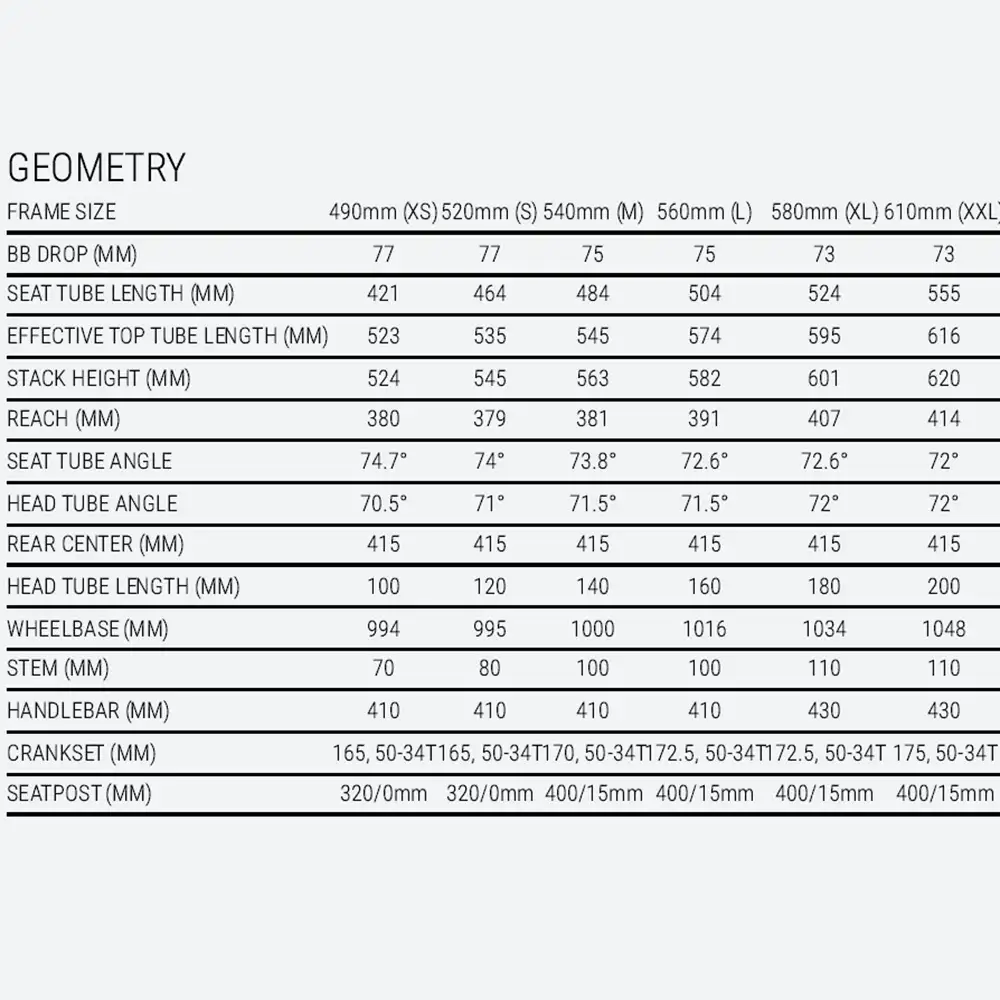

      GUIDE DES TAILLES ET GEOMETRIE

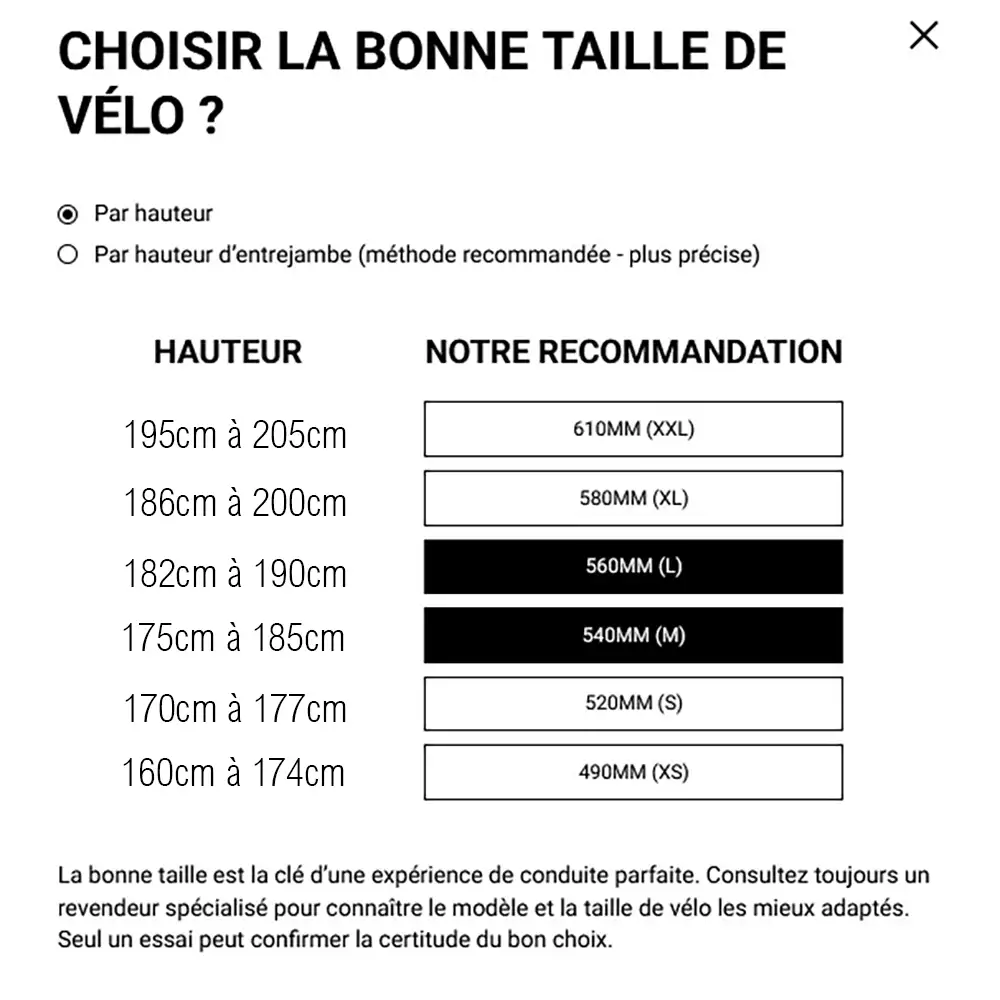

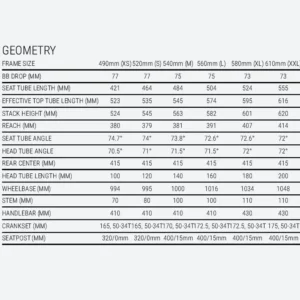

      GUIDE DES TAILLES X ROADGEO XR

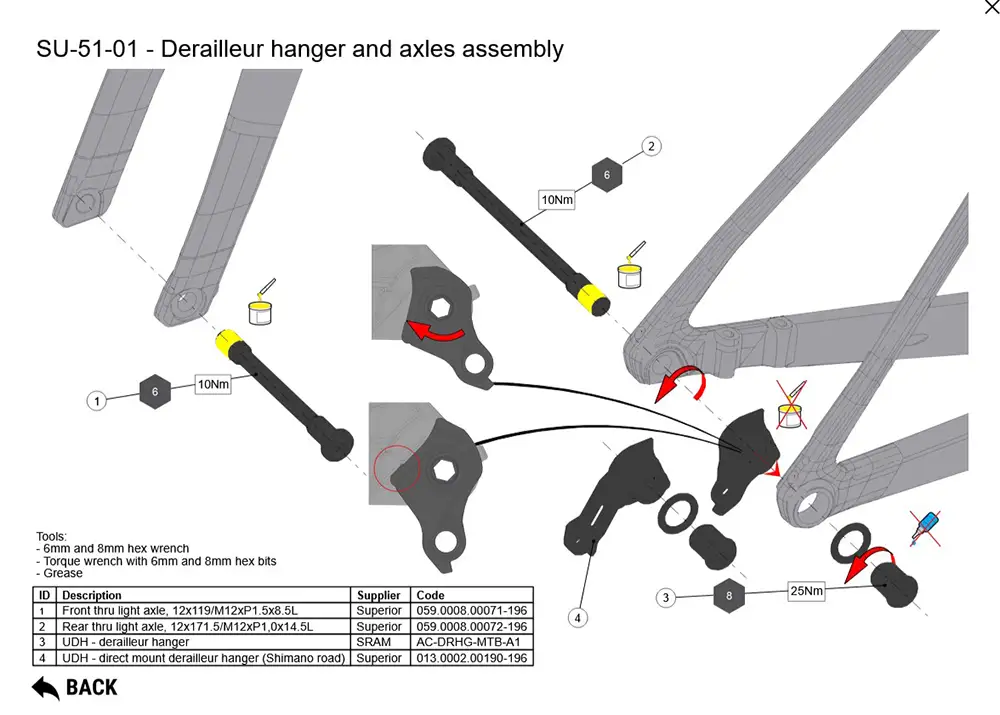

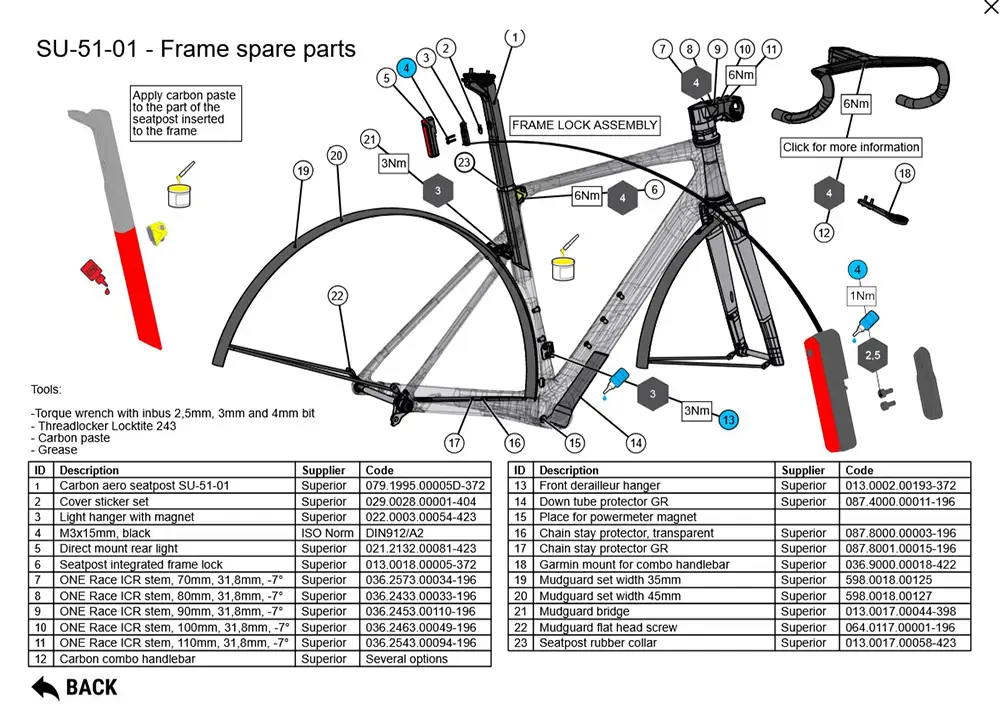

      FICHES TECHNIQUES

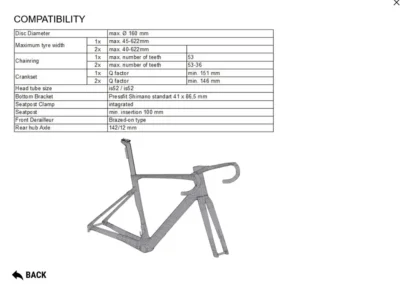

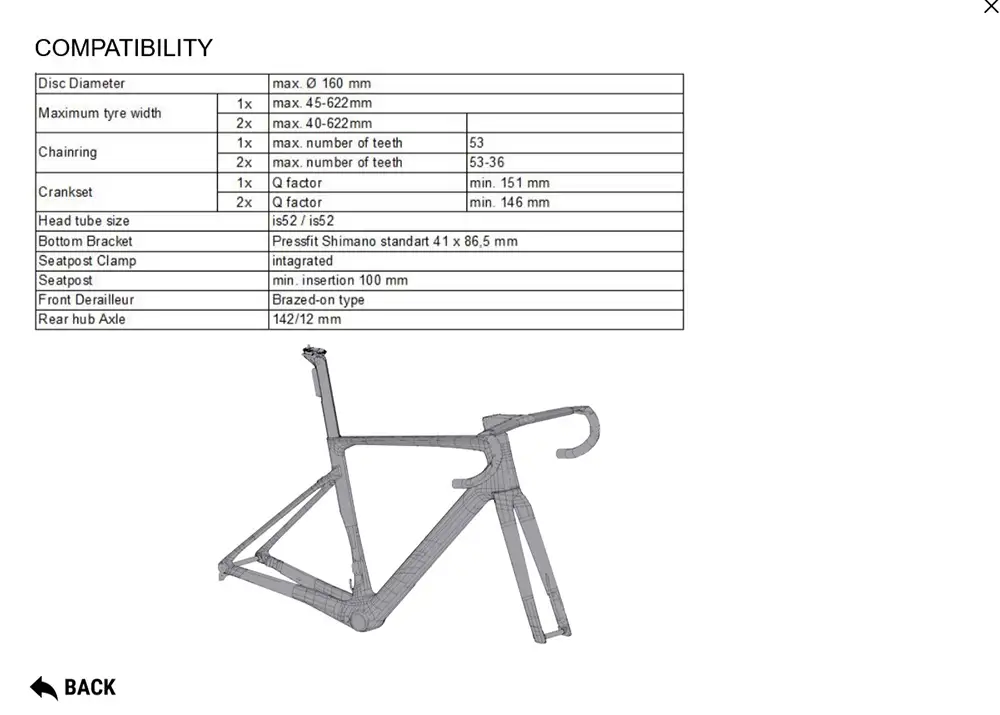

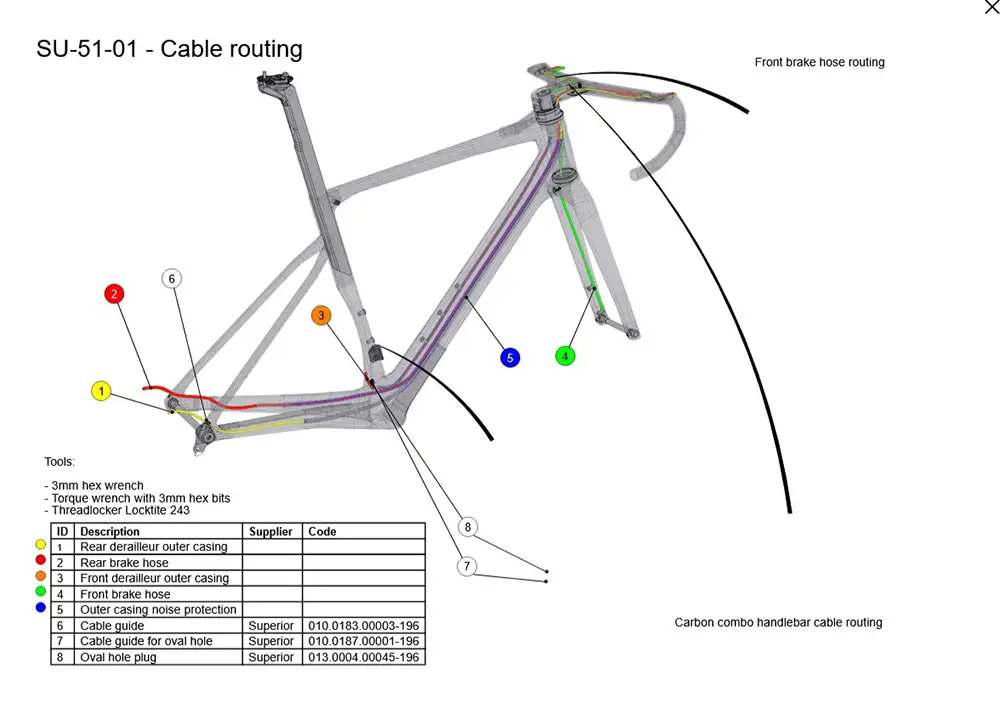

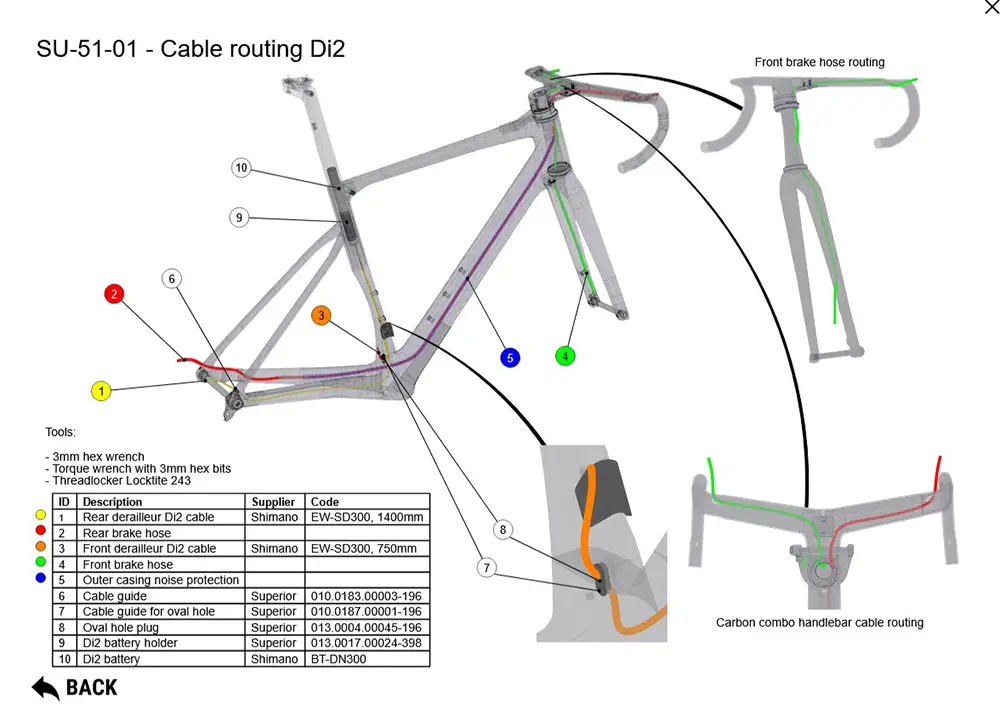

      GUIE TECH XR 7 GUIE TECH XR 6 GUIE TECH XR 5 GUIE TECH XR 4 GUIE TECH XR 3 GUIE TECH XR 2 GUIE TECH XR 1



      Référence Apesud : SP25-XRD-GR-9.9
